Woodtippers, wood-skips and its derived versions

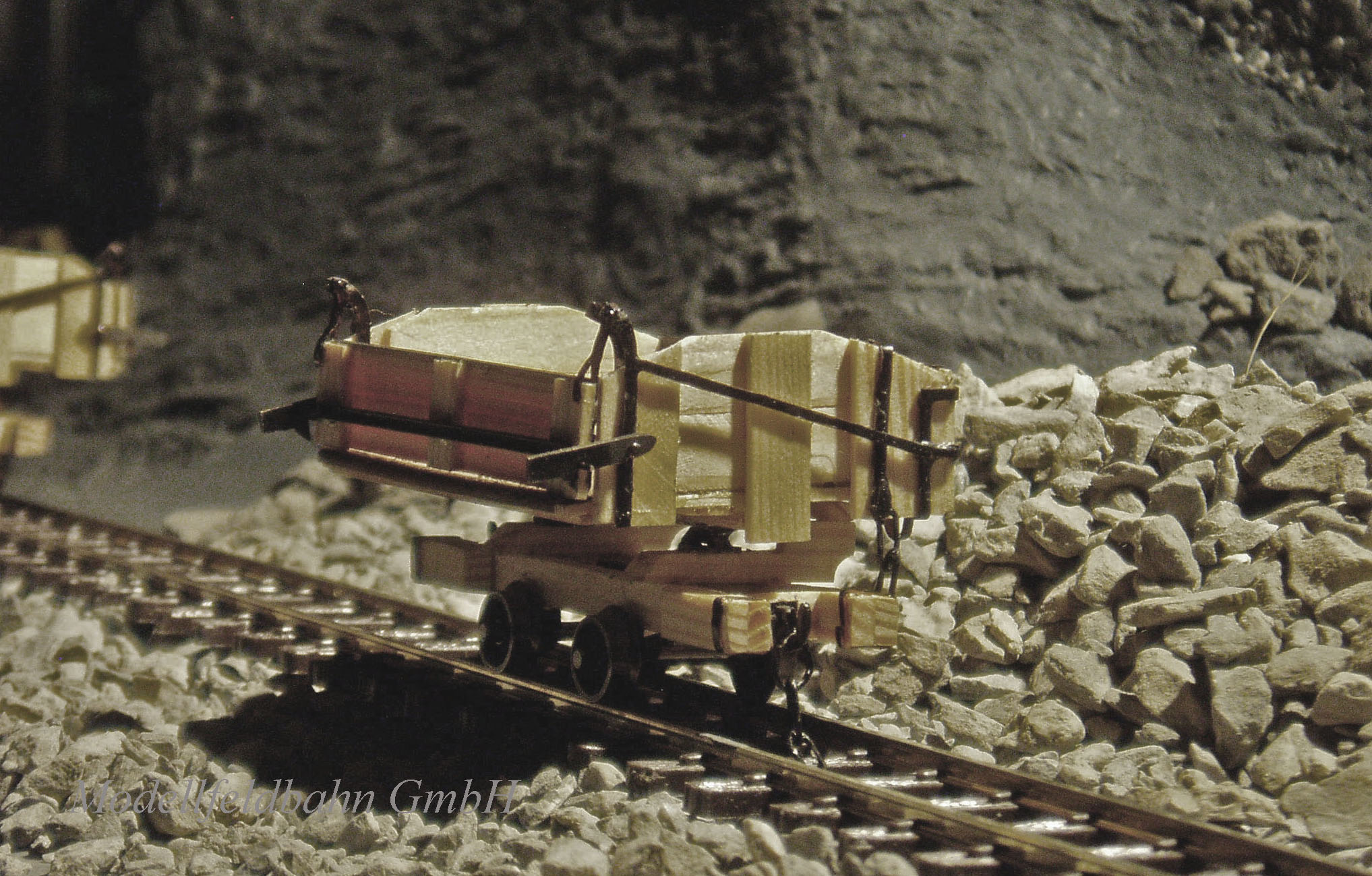

The model in 1:45 scale and 0e gauge:

The original in 750 mm gauge (2'59")

Box content of the prototype: 2,5 m3

The woodtippers are exact models in 1:45 scale and are made in three gauge versions:

- 16,5 mm (750 mm or 2'59"), which corresponds to the model gauge of 0e

- 12 mm (500 mm 600 mm), which corresponds to the model gauge of

  0f (this version is still in development)

The historical development and use of the woodtippers

therefore click the picture



Woodtipper functions:



Technical data and description

The wood-tippers are made of real Swiss ecologic pine wood, copper, brass, German silver, plastic for the isolation of the wheels, stainless steel and nickeled steel for the axes.

No photo-etched parts are used; instead they are all to scale (1:45) milled and turned parts.

The brass and copper parts are soldered and the wood milled and cut by hand.

The metal fittings only are painted black. The rest is natural and bare, untreated (Swiss) wood as the real one. (On demand a paint-job for the wood with an exact description is with an supplementary price possible)

Like the real wagon the tipper disposes of two locking-levers of the unloading hatch which work like the real

Red arrow, the lever is unlocked.

White arrow the lever is locked.



1 Tipper-box holding chain

2 Unloading hatch

3 Locking-lever of the tipper-box hatch

4 Coupling chain with hook

5 Plank holder, which serves to detach the tipper-box holding chain to make the box tip (at the original)

The tipper-box is held by chains, like the real, at two chain-hooks, one of them is magnified here. The hook (pointed plate) can be turned around like the original.









Green arrow:

The tipper-box is held by two chains to scale, like the original.

White arrow:

The woodtippers are coupled with coupling chain (to scale) and hook.

1 The hook and the chain 2 permit to couple locomotives 1 and wagons of other brands

3 Tipper-box holding chain with the chain hook mounted on the under-frame.

4 Eyelet to put into a plank (one here in front and an other at the rear). It serves to detach the chain at the original to make the box tip.



Here the same explained as above but viewed sideways
The open friction bearings of the tipper-box are shown here. They are made open like in reality to permit a fast and easy exchange of the tipper boxes by tipping them over the under- frame stop.

The tipper-boxes are exchangeable under themselves



Available Versions viewed with the example of the 1:87 versions:

Blue marking quarry version of the woodtipper like it is used today at the IRR. 3 Metal protection sheet and mounting angle 2, side-wall and hatch edge protection angles for the shovel excavator loading 1.

Green marking cheaper version with the metal sheet protection and angle 1.

The first woodtippers were made without steel base sheet and protection. For the transport of salt and delicate form- sands, all kind of protection was renounced to keep the material off the steel contact in keeping the best quality all the way long.

The quarry version tipped (like the IRR)



Further pictures:



 For a bigger view of the pictures below, please click on the pictures and come back with your own computer-"Back-Button"


Summary and prices

Versions of the models Short description for all gauges Prices ex works per waggon, with the take of 1 tipper Prices ex works per waggon, with the take of 3 to 15 tippers Prices ex works per waggon, with the take of 15 and more tippers each

The quarry woodtipper version (Like IRR)

with steel base sheet and angle and bord protection angles firmly mounted. For the use in quarries e.g.

For other gauges, please ask

with the take of 1 tipper

CHF 250.-

with the take of 2 to 5 tippers:

CHF 200.-

with the take of 6 to 24 tippers:

CHF 185.-

The weathered quarry woodtipper version (Like IRR)

with steel base sheet and angle and bord protection angles firmly mounted. For the use in quarries e.g.

For other gauges, please ask

Weathered and detailed after customer desire.

addtional price addtional price addtional price
Historical woodtipper version

Like in real, at the times of railway building, the most cheapest version.  It is used for the transport of form-sands, clays and salt e.g. which may not get in contact with steel in any kind, due to high quality standard reasons.

For other gauges, please ask

with the take of 1 tipper

CHF 235.-

with the take of 2 to 5 tippers:

CHF 185.-

with the take of 6 to 24 tippers:

CHF 170.-

  Historic woodtipper version with supplement

This is the historic woodtipper, however equipped with the mounted bord protection angles.

with the take of 1 tipper

CHF 238.-

with the take of 2 to 5 tippers:

CHF 188.-

with the take of 6 to 24 tippers:

CHF 173.-

  The quarry woodtipper version with reduction

This is the quarry woodtipper, however without bord protection angles.

This version is useful for loading from a platform or by a granary without excavator.

with the take of 1 tipper

CHF 245.-

with the take of 2 to 5 tippers:

CHF 195.-

with the take of 6 to 24 tippers:

CHF 180.-



Warranty:



The woodtippers have a livelong warranty with the exception of the chains with provable destruction force (load over more than 3 kg), couplers and the wear of the bearings.



Prices:

The prices are the same for all gauges 0e and 0f.

All prices are meant without postage, postage-packing and sales tax outside of Switzerland (toll).

After the receipt of the inquiry, a detailed offer is made. The shipping costs are presented in detail and the delivery time.

After the receipt of your order, the skips will be shipped in a signed parcel or signed letter, as soon as the offered final amount has arrived. You will be informed by Email about the receipt of the amount. Please regard, your complete name being on your payment. The shipping information is made by E-mail, as well.
